Ditto DX Forensic FieldStation

The Ditto® DX is a powerful, high performance drive imager and digital forensics device that’s perfect for digital investigation, eDiscovery, and data capture and analysis.

Overview

2x Logical Imaging performance

Native USB 3.0 connectivity

Rugged, all-metal, silent fan-free construction







Features

• Create local, remote, or networked disk clones and images

• Configure and manage Ditto DX via a VPN, network, or on the unit itself

•  Time saving logical imaging twice as fast as the original Ditto Forensic FieldStation

•  Natively supports write blocked SATA, eSATA, PATA, and USB 3.0/2.0

• Write to dual destinations simultaneously - Any combination of eSATA, USB 3.0, or Gigabit Ethernet

• Output images to portable RAID enclosures, NAS units, and other network destinations

• Data acquisition modes – Clone, DD, E01, L01, and simultaneous clone & image

• Hash types – MD5, SHA-1, MD5 + SHA-1, SHA-256, MD5+SHA-256

• Securely sanitize drives with preset erase modes or a user configurable pattern • Stealth Mode available for use with night vision goggles (not included

Ditto DX FIeld Station Quick start guide

Product name Ditto DX Forensic FieldStation            USER MANUAL: A9-000-0050_Rev1.1_Ditto_DX_User_Manual

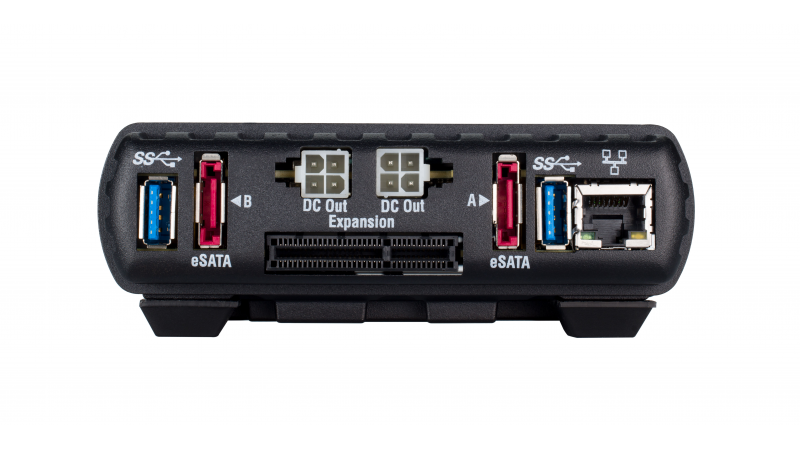

Host (I/O) Ports (1) IDE/PATA -- source side
(2) USB 2.0 -- for peripheral attachment
(3) USB 3.0 -- one source, two destination -- up to 5 Gbps
(3) eSATA -- one source, two destination -- up to 6 Gbps
(3) Gigabit (1000Base-T) Ethernet -- one source, one destination, one GUI access
Drive Types Supported
  • PATA/IDE 2.5" drives (with PATA Adapter 25)
  • PATA/IDE 3.5
  • SATA 2.5" drives
  • SATA 3.5" drives
  • iSCSI (network attached SCSI)
  • SATA SSD (solid state drives)
  • SAS 2.5" drives (with SAS Expansion Module)
  • SAS 3.5" drives (with SAS Expansion Module)
  • Hitachi 1.8" drives (with PATA Adapter 25)
  • Toshiba 1.8" drives (with PATA Adapter 18-TOSH)
  • MacBook Air 2010 (with SATA Adapter)
  • MSATA (with SATA Adapter)
  • Mini PCIe PATA (with PATA Adapter mPCIe)
  • Mini PCIe SATA (with PATA Adapter mPCIe)
  • Mini PCIe USB (with PATA Adapter mPCIe)
  • PCIe/NVMe (with adapter)
  • USB Thumb Drives (USB 3.0/2.0/1.1)
  • USB drives via USB cable (USB 3.0/2.0/1.1)
  • FireWire drives via FireWire cable (with FireWire Expansion Module)
SATA Speed 6G
Supports S.M.A.R.T. disk info Yes
Number of LEDs 15
Description of LEDs LED for each data connection (lit when connected) plus a light bar showing operating status
Audible alarm Yes
LCD Screen Four-line backlit LCD controlled with four soft-touch menu navigation buttons. Browser-based Ditto interface allows for direct operation, remote operation, and administration.
LCD Info 4 lines x 20 characters width
LCD Backlight Yes (backlighting can be disabled using stealth switch)
Stealth Mode Disables all light output (LEDs/LCD). LCD readable with night-vision goggles.
Navigation menu LCD/button driven menu system
Web admin interface Operable from a web browser
Operating system compatibility Windows XP or later
Mac OS X 10.4.x or higher
iOS Tablets/phones
Android Tablets/phones
Most versions of Linux
Browser compatibility Internet Explorer
Firefox
Safari
Chrome
Opera
Detects/reports HPA/DCO Yes
Allows HPA/DCO override Temporarily or permanently remove HPA/DCO
Fan(s) Fanless design
Construction material(s) All-aluminum construction
Ambient humidity range 5% to 95%, non-condensing
Power switch 2 position: On / Off
Power input 60W 12V 5A DC
Power input connector Barrel connector (center pin positive)
Dimensions 4.92" x 6.77" x 1.72" (125mm x 172mm x 43.7mm)
Weight 5.00 lbs. (2.27 kg)
Write Blocking Yes (source side)
Write Blocked ports eSATA (SATA), PATA/IDE, USB 3.0; other input types and drive types supported with Ditto Expansion Modules or drive adapters
Hashing Yes
Hashing info None, MD5, SHA-1, SHA-256, MD5 + SHA-1, MD5 + SHA-256. Hash types are hardware-accelerated; can hash during image or clone.
Erase modes Clear Partition Table, Quick Erase, Custom Erase, Secure Erase Normal, Secure Erase Enhanced, DoD Clear, DoD Sanitize, NIST800-88 Clear, NIST800-88 Purge
Image/clone output modes Single Drive Image, Single Drive Clone, Image and Clone, Image to mirrored disks, Clone to mirrored disks
Compliancy FCC, CE, RoHS,
